VDI-Werkzeug halter DIN 69880, Form E2, als Drehmaschine zubehör mit interner und externer Kühlmittel zufuhr, brüniert und präzis geschliffen.
VDI-Bohr stangen halter aus legiertem Gehäuse härten stahl HRC 58 ± 2.
Härtung tiefe 0,8mm ± 0,2mm.
VDI-Werkzeug halter sind brüniert und präzisions geschliffen.
Mit interner und externer Kühlung.
Variante-Design: VDI 16 - VDI 60 / Ø 6mm - Ø 50mm.

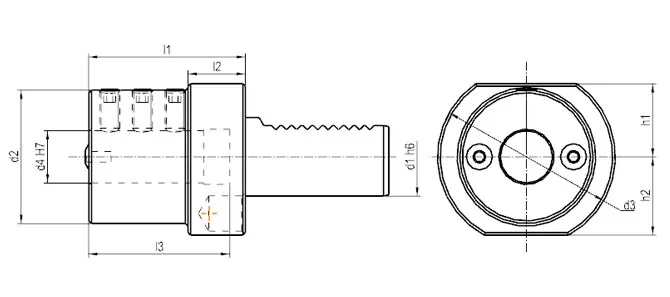

| Größe | D1 | D2 | D3 | D4 | H1 | L1 | L2 | L3 |
| E2-16x6 | 16 | 32 | 40 | 6 | 18 | 44 | 13 | 34 |
| E2-16x8 | 16 | 32 | 40 | 8 | 18 | 44 | 13 | 34 |
| E2-16x10 | 16 | 32 | 40 | 10 | 18 | 44 | 13 | 34 |
| E2-16x12 | 16 | 40 | 40 | 12 | 18 | 44 | 13 | 34 |
| E2-16x16 | 16 | 40 | 40 | 16 | 18 | 44 | 13 | 34 |
| E2-20x6 | 20 | 40 | 50 | 6 | 23 | 50 | 18 | 42 |
| E2-20x8 | 20 | 40 | 50 | 8 | 23 | 50 | 18 | 42 |
| E2-20x10 | 20 | 40 | 50 | 10 | 23 | 50 | 18 | 42 |
| E2-20x12 | 20 | 40 | 50 | 12 | 23 | 50 | 18 | 42 |
| E2-20x16 | 20 | 42 | 50 | 16 | 23 | 50 | 18 | 42 |
| E2-20x20 | 20 | 49 | 50 | 20 | 23 | 50 | 18 | 42 |
| E2-20x25 | 20 | 49 | 50 | 25 | 23 | 60 | 18 | 52 |
| E2-25x8 | 25 | 40 | 58 | 8 | 25 | 50 | 18 | 41 |
| E2-25x10 | 25 | 40 | 58 | 10 | 25 | 50 | 18 | 41 |
| E2-25x12 | 25 | 40 | 58 | 12 | 25 | 50 | 18 | 41 |
| E2-25x16 | 25 | 40 | 58 | 16 | 25 | 50 | 18 | 41 |
| E2-25x20 | 25 | 58 | 58 | 20 | 25 | 50 | 18 | 41 |
| E2-25x25 | 25 | 58 | 58 | 25 | 25 | 60 | 18 | 51 |
| E2-25x32 | 25 | 58 | 58 | 32 | 25 | 75 | 18 | 62 |
| E2-30x6 | 30 | 55 | 68 | 6 | 28 | 60 | 22 | |
| E2-30x8 | 30 | 55 | 68 | 8 | 28 | 60 | 22 | 43 |
| E2-30x10 | 30 | 55 | 68 | 10 | 28 | 60 | 22 | 43 |
| E2-30x12 | 30 | 55 | 68 | 12 | 28 | 60 | 22 | 43 |
| E2-30x16 | 30 | 55 | 68 | 16 | 28 | 60 | 22 | 55 |
| E2-30x20 | 30 | 55 | 68 | 20 | 28 | 60 | 22 | 54 |
| E2-30x25 | 30 | 55 | 68 | 25 | 28 | 60 | 22 | 54 |
| E2-30x30 | 30 | 67 | 68 | 30 | 28 | 75 | 22 | 61 |
| E2-30x32 | 30 | 67 | 68 | 32 | 28 | 75 | 22 | 61 |
| E2-40x8 | 40 | 55 | 83 | 8 | 32.5 | 75 | 22 | 43 |
| E2-40x10 | 40 | 55 | 83 | 10 | 32.5 | 75 | 22 | 43 |
| E2-40x12 | 40 | 55 | 83 | 12 | 32.5 | 75 | 22 | 58 |
| E2-40x16 | 40 | 55 | 83 | 16 | 32.5 | 75 | 22 | 61 |
| E2-40x20 | 40 | 55 | 83 | 20 | 32.5 | 75 | 22 | 61 |
| E2-40x25 | 40 | 55 | 83 | 25 | 32.5 | 75 | 22 | 61 |
| E2-40x30 | 40 | 82 | 83 | 30 | 32.5 | 75 | 22 | 61 |
| E2-40x32 | 40 | 82 | 83 | 32 | 32.5 | 75 | 22 | 61 |
| E2-40x40 | 40 | 82 | 83 | 40 | 32.5 | 90 | 22 | 76 |
| E2-50x12 | 50 | 68 | 98 | 12 | 35 | 90 | 30 | 71 |
| E2-50x16 | 50 | 68 | 98 | 16 | 35 | 90 | 30 | 76 |
| E2-50x20 | 50 | 68 | 98 | 20 | 35 | 90 | 30 | 76 |
| E2-50x25 | 50 | 68 | 98 | 25 | 35 | 90 | 30 | 76 |
| 50 | 69 | 98 | 30 | 35 | 90 | 30 | 76 | |
| E2-50x32 | 50 | 69 | 98 | 32 | 35 | 90 | 30 | 76 |
| E2-50x40 | 50 | 98 | 98 | 40 | 35 | 90 | - | 76 |
| E2-50x50 | 50 | 98 | 98 | 50 | 35 | 100 | - | 86 |
| E2-60x16 | 60 | 68 | 123 | 16 | 42.5 | 90 | 30 | 76 |
| E2-60x20 | 60 | 68 | 123 | 20 | 42.5 | 90 | 30 | 76 |
| E2-60x25 | 60 | 68 | 123 | 25 | 42.5 | 90 | 30 | 76 |
| E2-60x30 | 60 | 68 | 123 | 30 | 42.5 | 90 | 30 | 76 |
| E2-60x32 | 60 | 68 | 123 | 32 | 42.5 | 90 | 30 | 76 |
| E2-60x40 | 60 | 98 | 123 | 40 | 42.5 | 90 | 30 | 76 |
| E2-60x50 | 60 | 98 | 123 | 50 | 42.5 | 100 | 30 | 86 |
| E2-80x20 | 80 | 68 | 158 | 20 | 55 | 100 | 30 | 86 |
| E2-80x25 | 80 | 68 | 158 | 25 | 55 | 100 | 30 | 86 |
| E2-80x32 | 80 | 68 | 158 | 32 | 55 | 100 | 30 | 86 |
| E2-80x40 | 80 | 98 | 158 | 40 | 55 | 100 | 30 | 86 |
| E2-80x50 | 80 | 98 | 158 | 50 | 55 | 100 | 30 | 92 |
| E2-80x60 | 80 | 98 | 158 | 60 | 55 | 100 | 30 | 92 |
| Größe | D1 | D2 | D3 | D4 | H1 | L1 | L2 | L3 |
| E2-20x5/16" | 20 | 40 | 50 | 5/16" | 23 | 50 | 18 | 42 |
| E2-20x3/8" | 20 | 40 | 50 | 3/8" | 23 | 50 | 18 | 42 |
| E2-20x1/2" | 20 | 4050 | 1/2" | 23 | 50 | 18 | 42 | |
| E2-20x5/8" | 20 | 40 | 50 | 5/8" | 23 | 50 | 18 | 42 |
| E2-20x3/4" | 20 | 45 | 50 | 3/4" | 23 | 50 | 18 | 42 |
| E2-20x1" | 20 | 50 | 50 | 1" | 23 | 60 | 18 | 52 |
| E2-30x5/16" | 30 | 55 | 68 | 5/16" | 28 | 60 | 22 | 43 |
| E2-30x3/8" | 30 | 55 | 68 | 3/8" | 28 | 60 | 22 | 43 |
| E2-30x1/2" | 30 | 55 | 68 | 1/2" | 28 | 60 | 22 | 43 |
| E2-30x5/8" | 30 | 55 | 68 | 5/8" | 28 | 60 | 22 | 55 |
| E2-30x3/4" | 30 | 55 | 68 | 3/4" | 28 | 60 | 22 | 54 |
| E2-30x1" | 30 | 55 | 68 | 1" | 28 | 60 | 22 | 54 |
| E2-30x1-1/4" | 30 | 67 | 68 | 1-1/4" | 28 | 75 | 22 | 61 |
| E2-40x3/8" | 40 | 55 | 83 | 3/8" | 32.5 | 75 | 22 | 43 |
| E2-40x1/2" | 40 | 55 | 83 | 1/2" | 32.5 | 75 | 22 | 58 |
| E2-40x5/8" | 40 | 55 | 83 | 5/8" | 32.5 | 75 | 22 | 61 |
| E2-40x3/4" | 40 | 55 | 83 | 3/4" | 32.5 | 75 | 22 | 61 |
| E2-40x1" | 40 | 55 | 83 | 1" | 32.5 | 75 | 22 | 61 |
| E2-40x1-1/4" | 40 | 82 | 83 | 1-1/4" | 32.5 | 75 | 22 | 61 |
| E2-40x1-1/2" | 40 | 82 | 83 | 1-1/2" | 32.5 | 90 | 22 | 76 |
| E2-50x1/2" | 50 | 68 | 98 | 1/2" | 35 | 90 | 30 | 71 |
| E2-50x5/8" | 50 | 68 | 98 | 5/8" | 35 | 90 | 30 | 76 |
| E2-50x3/4" | 50 | 68 | 98 | 35 | 90 | 30 | 76 | |
| E2-50x1" | 50 | 68 | 98 | 1" | 35 | 90 | 30 | 76 |
| E2-50x1-1/4" | 50 | 69 | 98 | 1-1/4" | 35 | 90 | 30 | 76 |
| E2-50x1-1/2" | 50 | 98 | 98 | 1-1/2" | 35 | 90 | - | 76 |
| E2-50x2" | 50 | 98 | 98 | 2" | 35 | 100 | - | 86 |
| E2-60x5/8" | 60 | 68 | 123 | 5/8" | 42.5 | 90 | 30 | 76 |
| E2-60x3/4" | 60 | 68 | 123 | 3/4" | 42.5 | 90 | 30 | 76 |
| E2-60x1" | 60 | 68 | 123 | 1" | 42.5 | 90 | 30 | 76 |
| E2-60x1-1/4" | 60 | 68 | 123 | 1-1/4" | 42.5 | 90 | 30 | 76 |
| E2-60x1-1/2" | 60 | 98 | 123 | 1-1/2" | 42.5 | 90 | 30 | 76 |
| E2-60x2" | 60 | 98 | 123 | 2" | 42.5 | 100 | 30 | 86 |
