Gesichts mühlen halter
BT-Gesichts mühlen werkzeug halter ist eine Art Werkzeug halter, der speziell für Gesichts fräser verwendet wird
1. gute Starrheit
2. hohe Schneide effizienz
3. Bequeme Bedienung
Material | 40Cr, 20CrMnTi |
Typ | FMA, FMB |
Größe | NT40-FMB27-30 |
Genauigkeit | 0,005mm |
Härte | 52-58HRC |
Nutzung | Zum Halten wie Muschel mühlen schneider |
Standard | MAS403BT, DIN69871, CAT ANSI B5.50, DIN2080 |

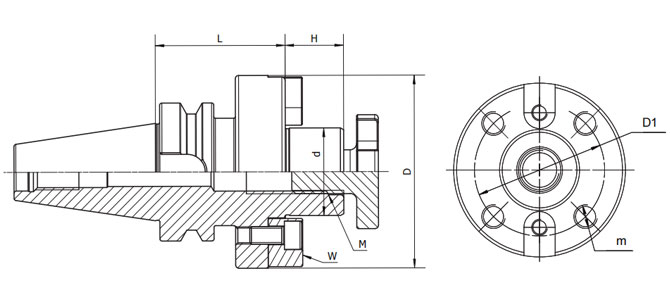

Größe | D | L | D | H | M |
BT30-FMB16-40 | 16 | 40 | 38 | 17 | M8 |
BT30-FMB22-40 | 22 | 40 | 48 | 19 | M10 |
BT30-FMB27-40 | 27 | 40 | 58 | 21 | M12 |
BT30-FMB32-50 | 32 | 50 | 78 | 24 | M16 |
BT40-FMB16-40 | 16 | 40 | 38 | 17 | M8 |
BT40-FMB22-40 | 22 | 40 | 48 | 19 | M10 |
BT40-FMB27-40 | 27 | 40 | 58 | 21 | M12 |
BT40-FMB32-50 | 32 | 50 | 78 | 24 | M16 |
BT40-FMB40-50 | 40 | 50 | 88 | 27 | M20 |
BT40-FMB22-60 | 22 | 60 | 48 | 19 | M10 |
BT40-FMB27-60 | 27 | 60 | 58 | 21 | M12 |
BT40-FMB32-60 | 32 | 60 | 78 | 24 | M16 |
BT40-FMB40-60 | 40 | 60 | 88 | 27 | M20 |
BT40-FMB16-100 | 16 | 100 | 38 | 17 | M8 |
BT40-FMB22-100 | 22 | 100 | 48 | 19 | M10 |
BT40-FMB27-100 | 27 | 100 | 58 | 21 | M12 |
BT40-FMB32-100 | 32 | 100 | 78 | 24 | M16 |
BT40-FMB40-100 | 40 | 100 | 88 | 27 | M20 |
BT40-FMB16-160 | 16 | 160 | 38 | 17 | M8 |
BT40-FMB22-160 | 22 | 160 | 48 | 19 | M10 |
BT40-FMB27-160 | 27 | 160 | 58 | 21 | M12 |
BT40-FMB32-160 | 32 | 160 | 78 | 24 | M16 |
BT40-FMB40-160 | 40 | 160 | 88 | 27 | M20 |
BT40-FMB22-200 | 22200 | 48 | 19 | M10 | |
BT40-FMB27-200 | 27 | 200 | 58 | 21 | M12 |
BT40-FMB32-200 | 32 | 200 | 78 | 24 | M16 |
BT40-FMB40-200 | 40 | 200 | 88 | 27 | M20 |
BT40-FMB22-250 | 22 | 250 | 48 | 19 | M10 |
BT40-FMB22-300 | 22 | 300 | 48 | 19 | M10 |

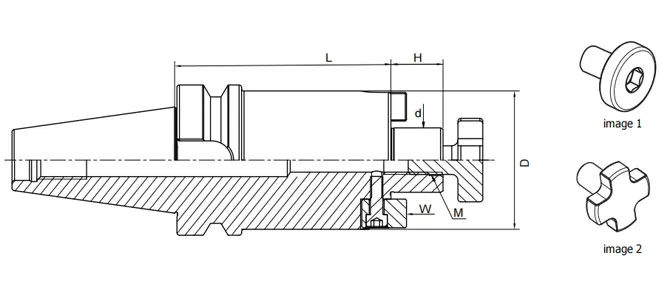

Größe | D | L | D | H | M |
BT50-FMB16-40 | 16 | 40 | 38 | 17 | M8 |
BT50-FMB22-40 | 22 | 40 | 48 | 19 | M10 |
BT50-FMB27-40 | 27 | 40 | 58 | 21 | M12 |
BT50-FMB32-50 | 32 | 50 | 78 | 24 | M16 |
BT50-FMB40-50 | 40 | 50 | 88 | 27 | M20 |
BT50-FMB60-75 | 60 | 75 | 129 | 25 | M30 |
BT50-FMB22-60 | 22 | 60 | 48 | 19 | M10 |
BT50-FMB27-60 | 27 | 60 | 58 | 21 | M12 |
BT50-FMB32-60 | 32 | 60 | 78 | 24 | M16 |
BT50-FMB40-60 | 40 | 60 | 88 | 27 | M20 |
BT50-FMB16-100 | 16 | 100 | 38 | 17 | M8 |
BT50-FMB22-100 | 22 | 100 | 48 | 19 | M10 |
BT50-FMB27-100 | 27 | 100 | 58 | 21 | M12 |
BT50-FMB32-100 | 32 | 100 | 78 | 24 | M16 |
BT50-FMB40-100 | 40 | 100 | 88 | 27 | M20 |
BT50-FMB22-160 | 22 | 160 | 48 | 19 | M10 |
BT50-FMB27-160 | 27 | 160 | 58 | 21 | M12 |
BT50-FMB32-160 | 32 | 160 | 78 | 24 | M16 |
BT50-FMB40-160 | 40 | 160 | 88 | 27 | M20 |
BT50-FMB22-200 | 22 | 200 | 48 | 19 | M10 |
BT50-FMB27-200 | 27 | 200 | 58 | 21 | M12 |
32 | 200 | 78 | 24 | M16 | |
BT50-FMB40-200 | 40 | 200 | 88 | 27 | M20 |
BT50-FMB22-250 | 22 | 250 | 48 | 19 | M10 |
BT50-FMB27-250 | 27 | 250 | 58 | 21 | M12 |
BT50-FMB32-250 | 32 | 250 | 78 | 24 | M16 |
BT50-FMB40-250 | 40 | 250 | 88 | 27 | M20 |
BT50-FMB22-300 | 22 | 300 | 48 | 19 | M10 |
BT50-FMB27-300 | 27 | 300 | 58 | 21 | M12 |
BT50-FMB32-300 | 32 | 300 | 78 | 24 | M16 |
BT50-FMB40-300 | 40 | 300 | 88 | 27 | M20 |
BT50-FMB22-100(D = 60) | 22 | 100 | 60 | 19 | M10 |
BT50-FMB22-150/160(D = 60) | 22 | 150 | 60 | 19 | M10 |
BT50-FMB22-200(D = 60) | 22 | 200 | 60 | 19 | M10 |
BT50-FMB22-250(D = 60) | 22 | 250 | 60 | 19 | M10 |
BT50-FMB22-300(D = 60) | 22 | 300 | 60 | 19 | M10 |
